M-Design Luna Diamond 1000V
Wood-burning fireplace Luna Diamond 1000 V, change the atmosphere without changing the insert.

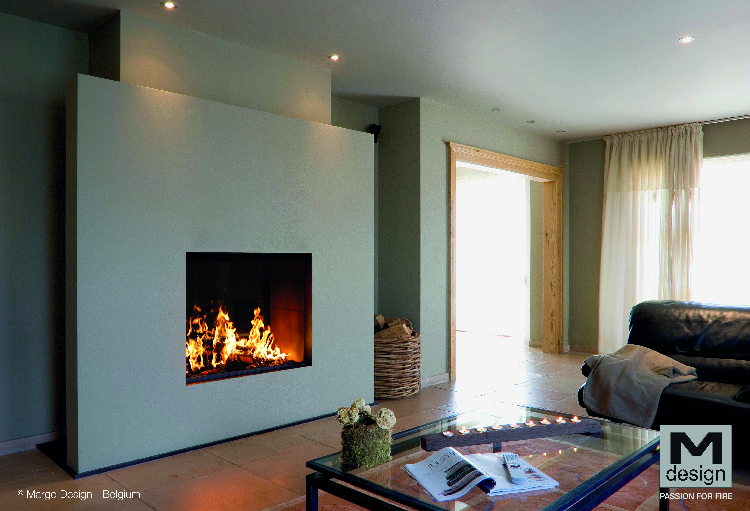

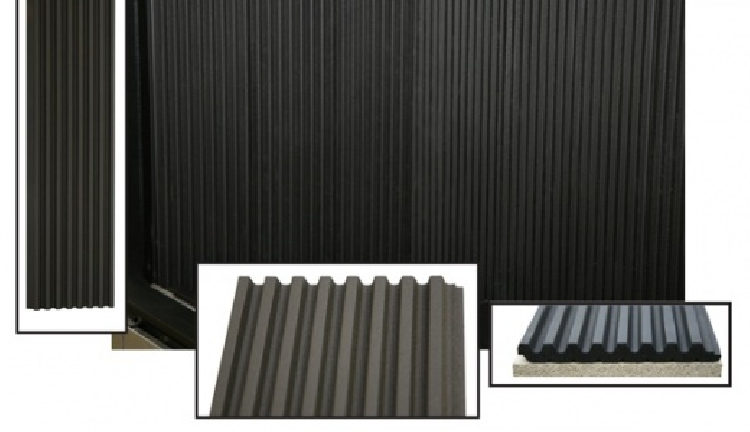

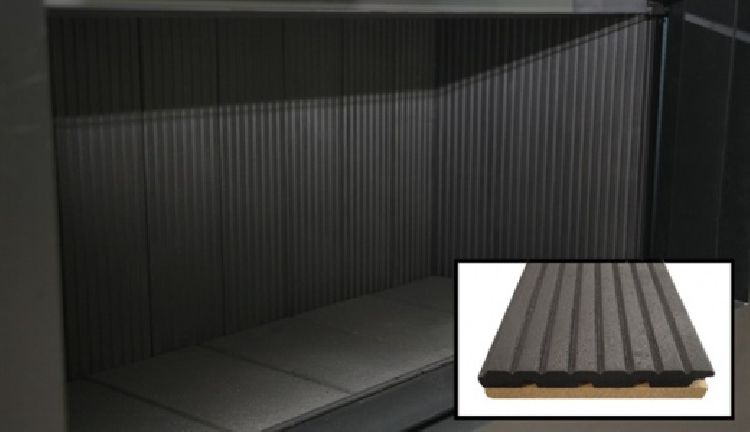

The Luna Diamond 1000 V wood-burning fireplace is almost one metre high and seventy centimetres wide, making it a large built-in fireplace that will delight all fire lovers. Without any floor space, this insert will easily find its place in any interior. As is often the case with M-Design fireplaces, the perfect lines and the pure design of the fireplace open up a whole range of possibilities in terms of interior design. You can change the atmosphere without changing the fireplace.The tenfold increase in performance of wood heating Thanks to the integration of the latest technological innovations, the Belgian M-Design offers a high-performance wood fireplace. Windows and retractable fire screens, manually or motorised, heating efficiency of over 80%, fire management, choice of chimney base from a range of steel, fine or coarse cast iron or refractory brick.
Technical data
| Reference | 54.9460 |
|---|---|
| Dimensions | 929 x 692 mm |
| Rated power rating | 16kW |
| Weight | 290kg |
| Diameter / Smoke outlet | 250Ø |
| Manufacturer | M-Design |
Awards
Documents
Fireplace dimensions
Declaration of performance
SWIPE Manual
Installation and Operating Instructions
DWG 2D
Variants
| Reference | Article | |
| 54.9458 | Luna Diamond 550V Without interior Mounting frame included |
|
| 54.9459 | Luna Diamond 850V Without interior Mounting frame included |
|
| 54.9460 | Luna Diamond 1000V Without interior Mounting frame included |
|
| 54.9461 | Luna Diamond 1150V Without interior Mounting frame included |
Accessories
| Reference | Article | |
| 54.9352 | Fresh air damper for a chimney Cable valve ø150mm complete with control and long cable |
|
| 54.9473 | Built-in smoke damper With stem |
|
| 2.9772 | Outside fresh air kit | |

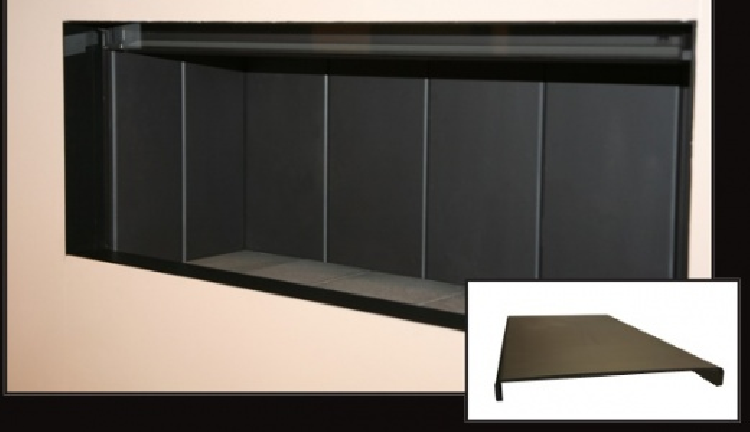

| 54.9479 | Black steel interior - Luna Diamond "V" version wood | |

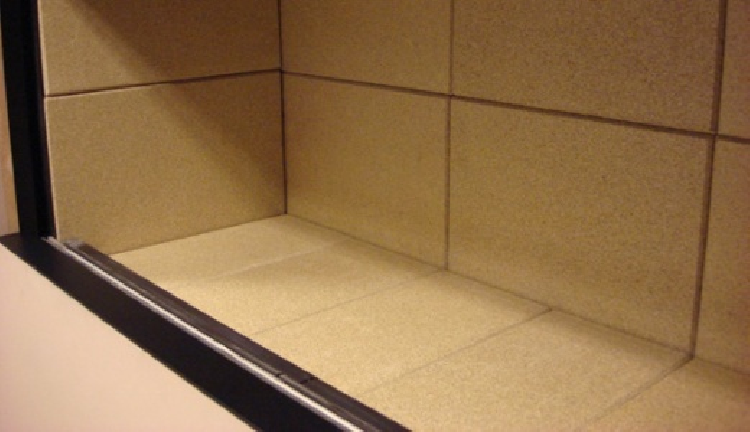

| 54.9480 | Refractory brick interior - Luna Diamond "V" version wood | |
| 54.9561 | Mounting frame steel black 4 mm | 4 sides 45 mm | |
| 54.9562 | Mounting frame steel black 4 mm | 4 sides 75 mm | |
| 54.9563 | Mounting frame steel black 4 mm | 4 sides 105 mm | |
| 54.9624 | SWIPE option For the operation of the automatic opening/closing of the window and firewall, automatic air flap and adjustment of the RGB LED lighting (5 m). Control of the fireplace with a smartphone or tablet (Apple/Android). |
|
| View more |
