Klover ECOMPACT 290
This pellet boiler can be integrated with all heating systems (under renovation or new construction). It can simply be operated with a sensor on your water tank, which turns the boiler on and off as required.
All hydraulic components are integrated into the standard device, it is also possible to control a twin boiler or any other component of an existing heating system (3-way valve, DHW flow sensor).

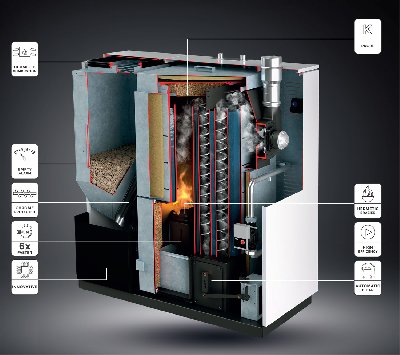

The boiler is made of stainless steel, the inferno is hermetic and the hydraulic connections are located on top of the unit, making installation and maintenance easier. The smoke outlet can be on top or at the back.
It is self-cleaning (fireplace and turbulators), which reduces maintenance frequencies to a minimum. In addition, a pellet level sensor alerts you when it is necessary to recharge the device or activates a silo feeding system (storage of large quantities of pellets).
As an option, the boiler can be remotely controlled by WiFi or in a room remotely controlled by an external control panel, for routine use, a touch control panel is located on the front of the unit.
The Klover ECOMPACT 290 is visible at our exhibition with free access 24/7.
Watch the video
Site de Klover.ch
Klover ECOMPACT 290 : Pellet boilerTechnical data
| Reference | 26.7963 |
|---|---|
| Rated power rating | 27.5kW |
| Heating capacity | ~670m3 |
| Weight | 380kg |
| Tank capacity | 75kg |
| Diameter / Smoke outlet | 100Ø |
| Manufacturer | KLOVER |
| Smoke outlet | Top and back |
| Tank autonomy | 96h |
| View more | |
Awards
Documents
Variants
| Reference | Article | |
| 26.7959 | ECOMPACT 190 boiler Central heating |
|
| 26.7960 | ECOMPACT 190-P boiler Central heating and domestic water production |
|
| 26.7961 | ECOMPACT 250 boiler Central heating |
|
| 26.7962 | ECOMPACT 250-P boiler Central heating and domestic water production |
|
| 26.7963 | ECOMPACT 290 boiler Central heating |
|
| 26.7964 | ECOMPACT 290-P boiler Central heating and domestic water production |
|
| 26.9134 | ECOMPACT 270 boiler Central heating |
|
| 26.9135 | ECOMPACT 270-P boiler Central heating and domestic water production |
|
| 26.9136 | ECOMPACT 320 boiler Central heating |
|
| 26.9137 | ECOMPACT 320-P boiler Central heating and domestic water production |
|
| View more |
Accessories
| Reference | Article | |
| 26.8095 | Wall-mounted remote control | |
| 26.8096 | Anti-condensation valve 1" - 55°C - Kv 9 m3/h |
|
| 26.8071 | Wi-Fi module | |
| 26.8132 | Pellet suction system Vacuum cleaner (BOX 1) |
