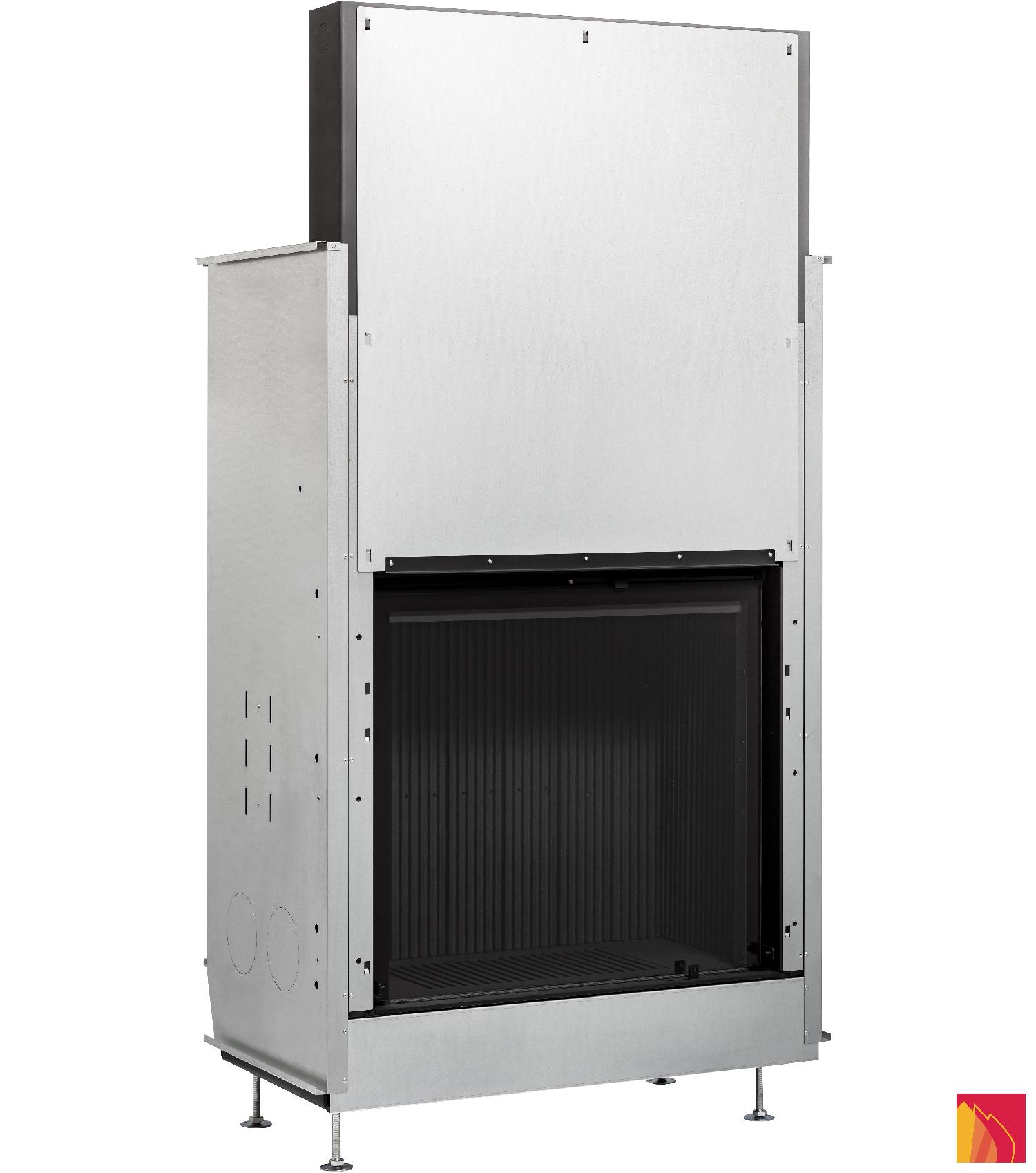

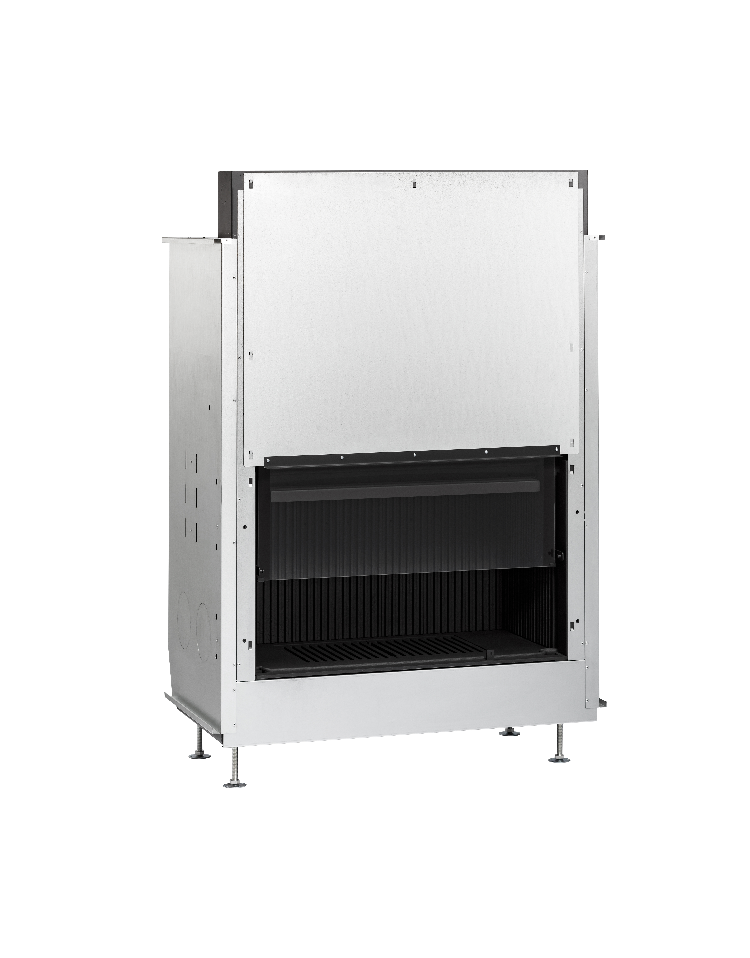

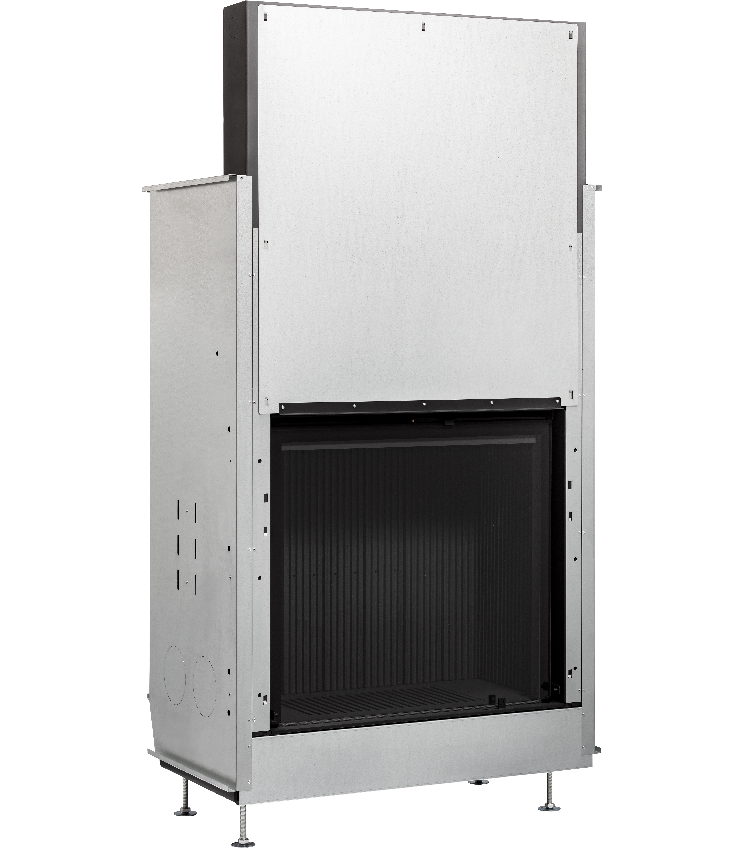

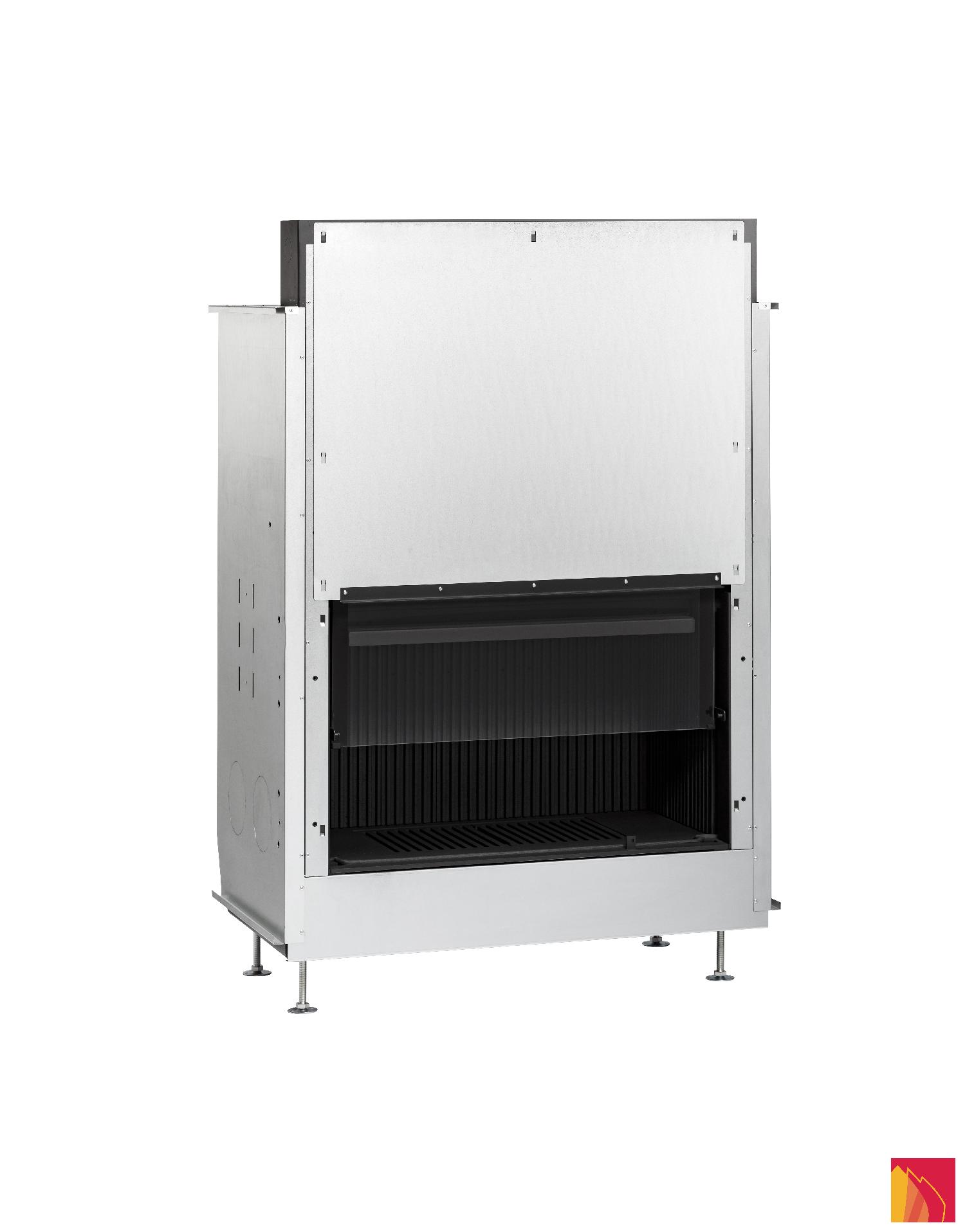

Metalfire ULTIME D 1050-75 1S

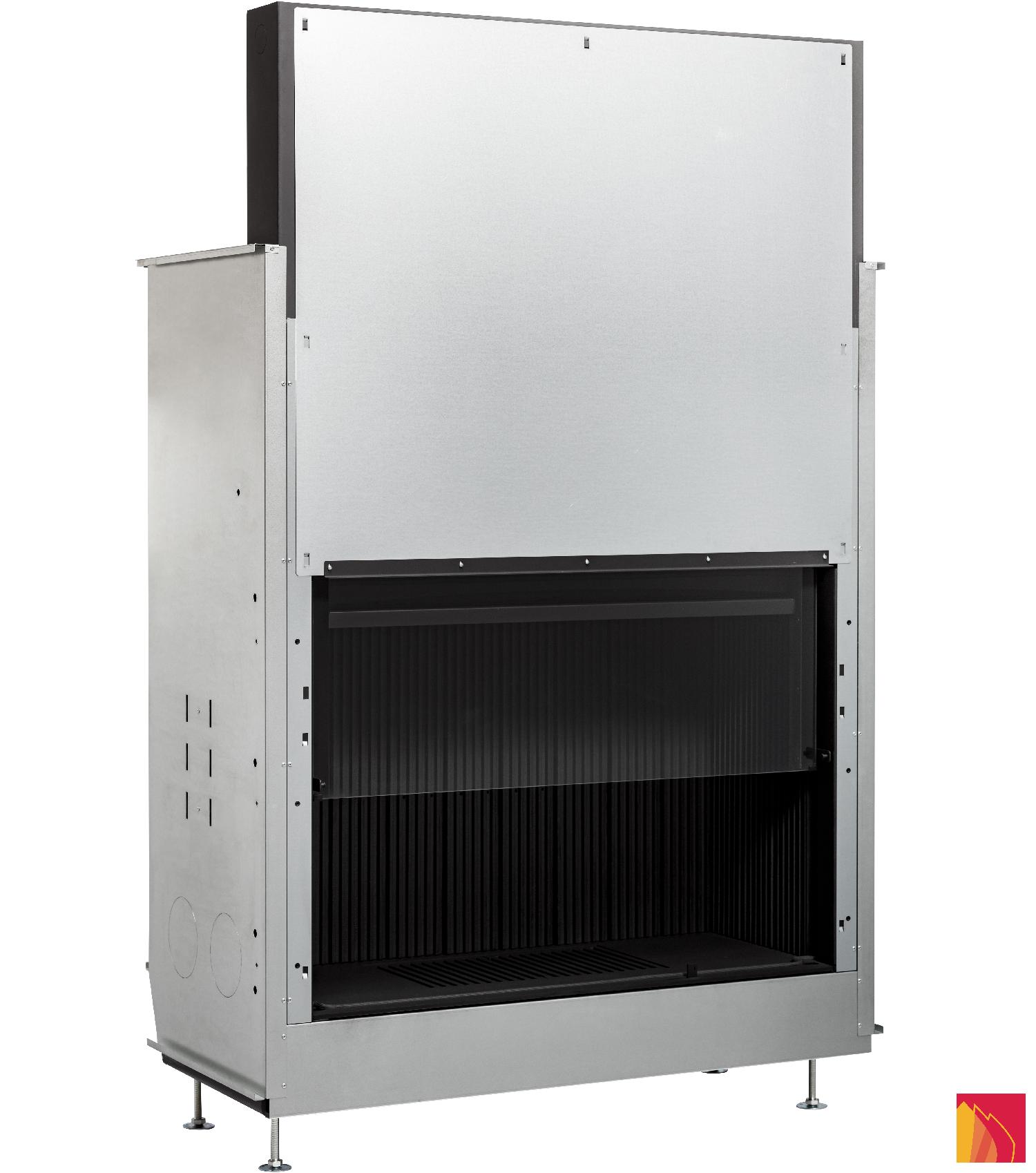

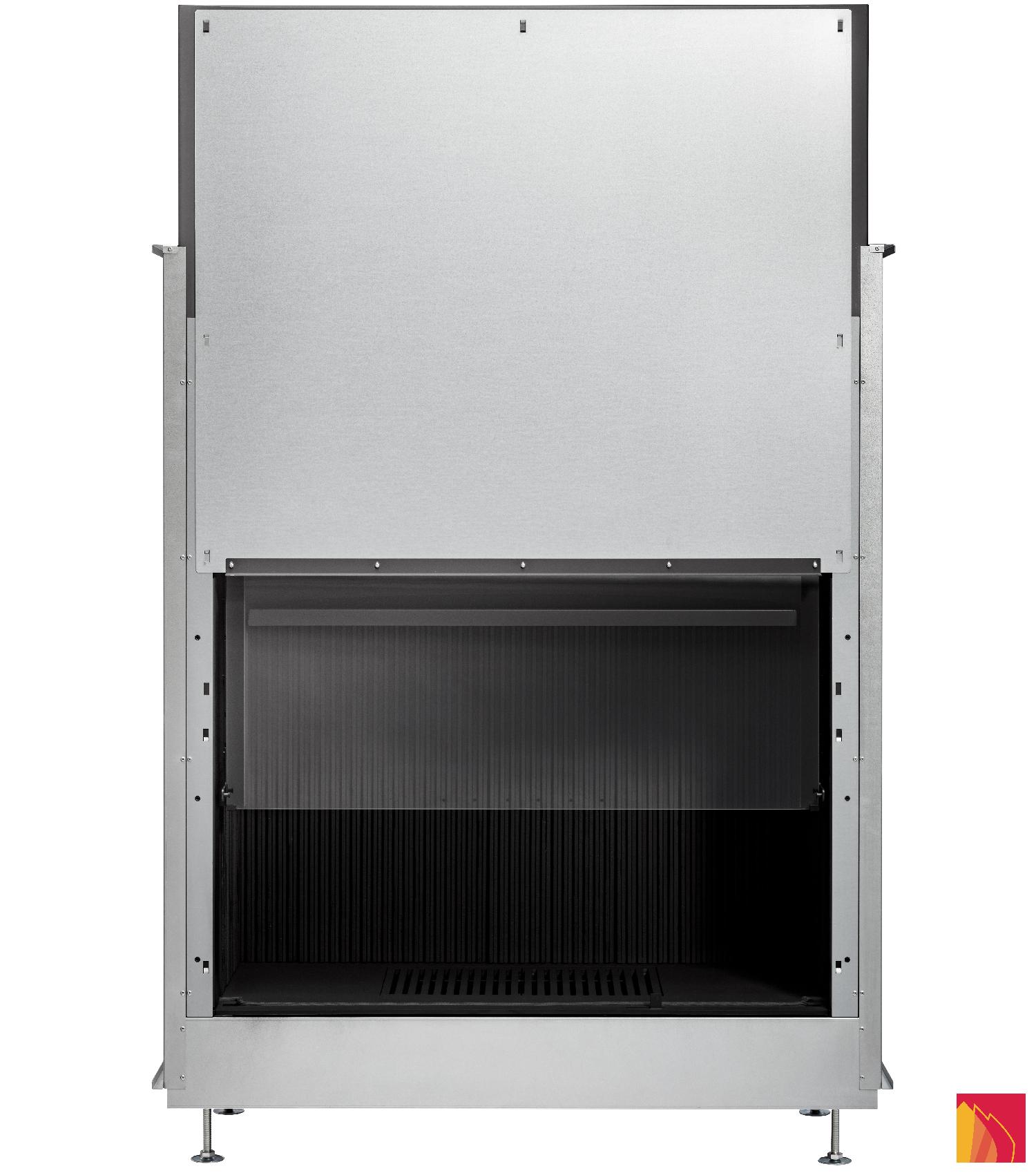

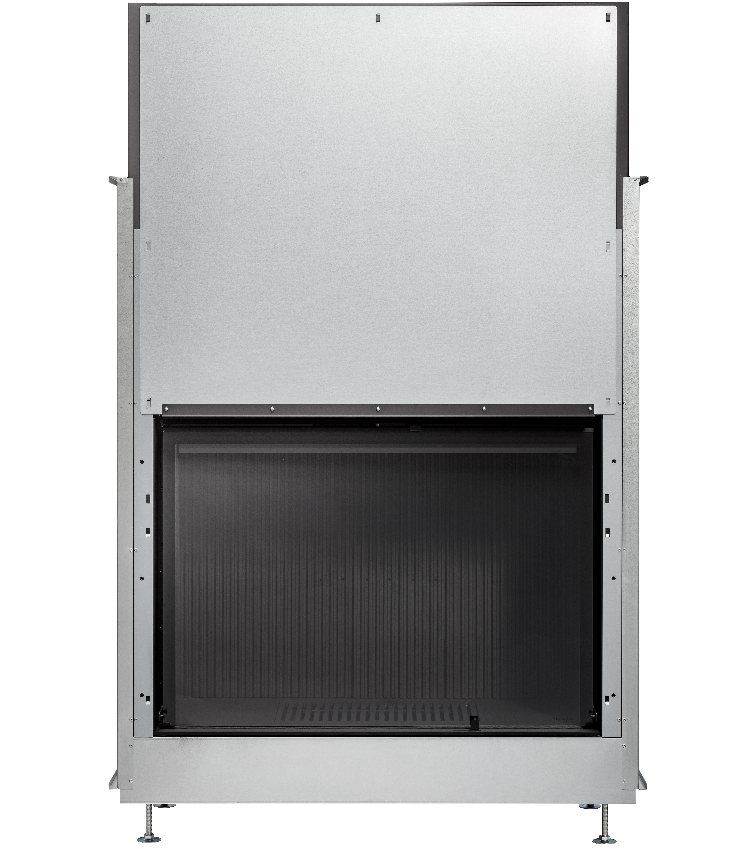

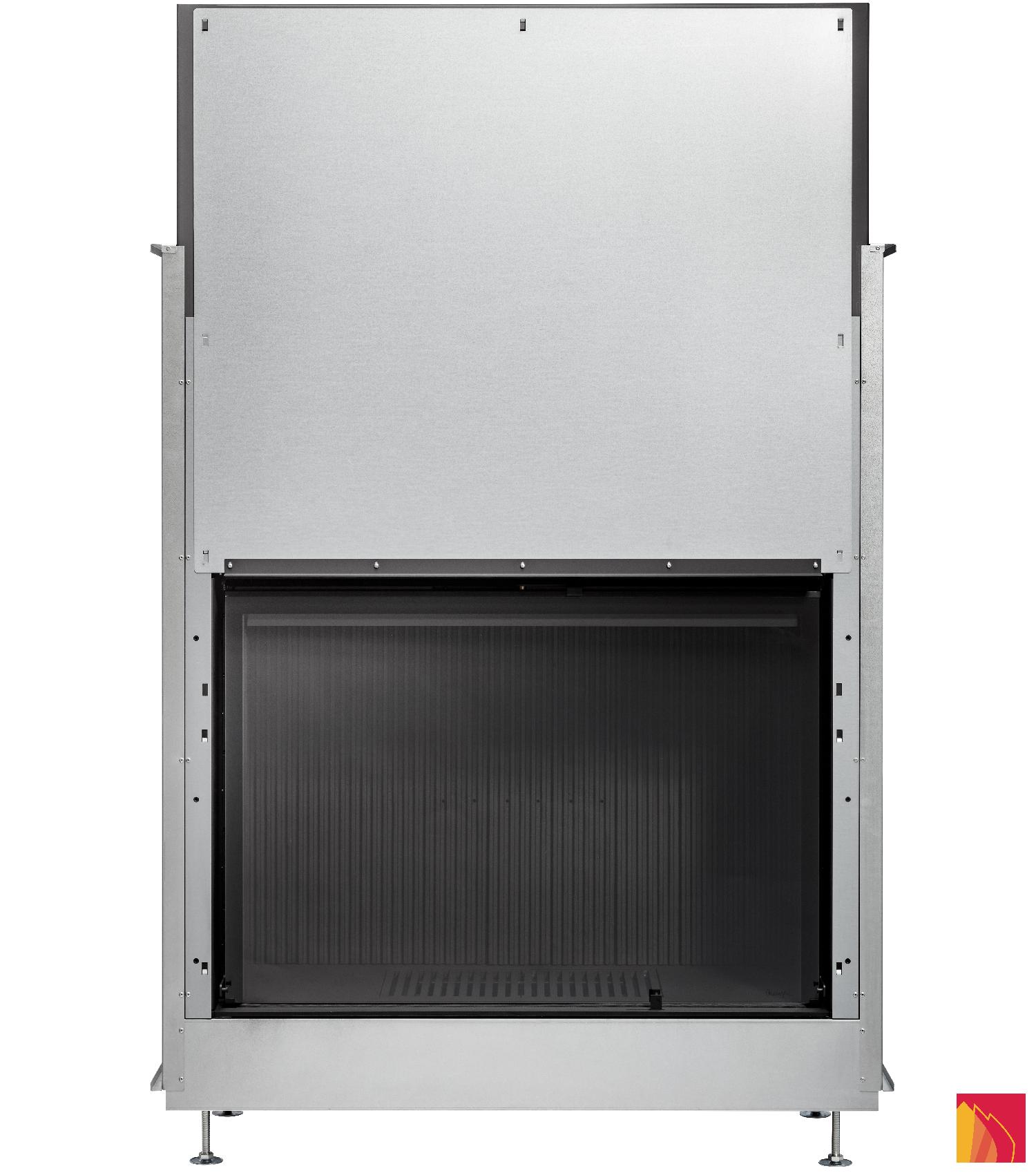

Metalfire ULTIME D 1050-75 1S closed fireplace: the high-performance wood-burning insert to enhance your fireplace
Designed for contemporary architecture, the Metalfire ULTIME D 1050-75 1S combines a sealed combustion chamber with a large lift-up glass pane to offer a panoramic view of the flames while preserving indoor air quality. This room-sealed closed fireplace can be easily integrated into low-energy homes thanks to its connection to the outside air.
With an efficiency of around 81%, a rated output of almost 23.5 kW and Ecodesign 2022 certification, this wood-burning insert boasts an A+ energy label, guaranteeing clean combustion and reduced emissions of fine particles. You'll enjoy even, enveloping warmth while keeping your log consumption under control.

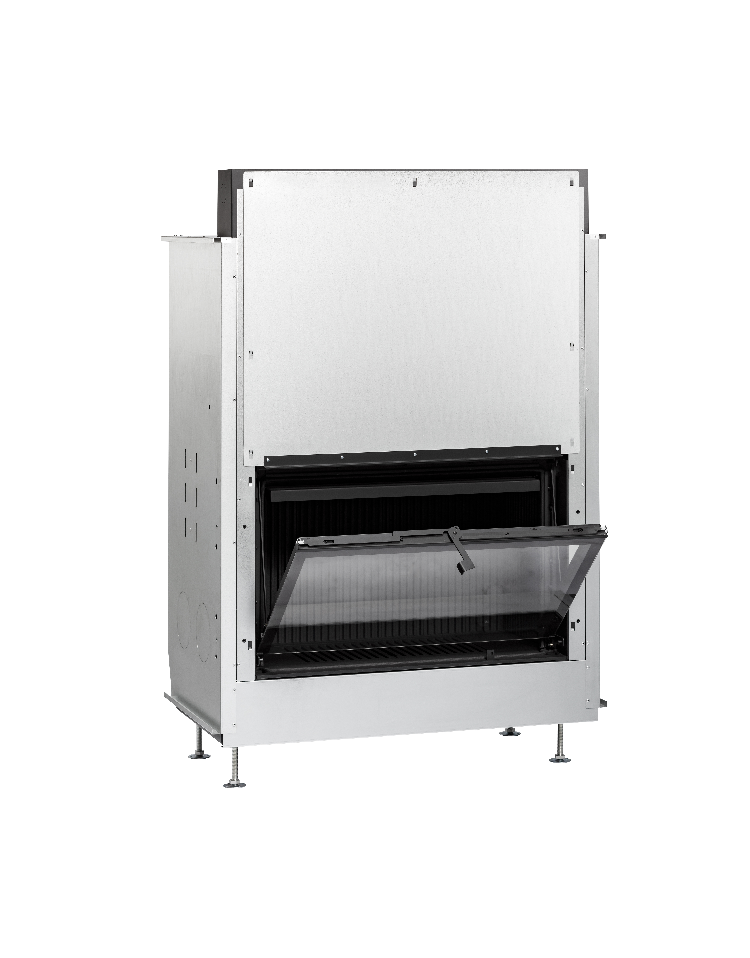

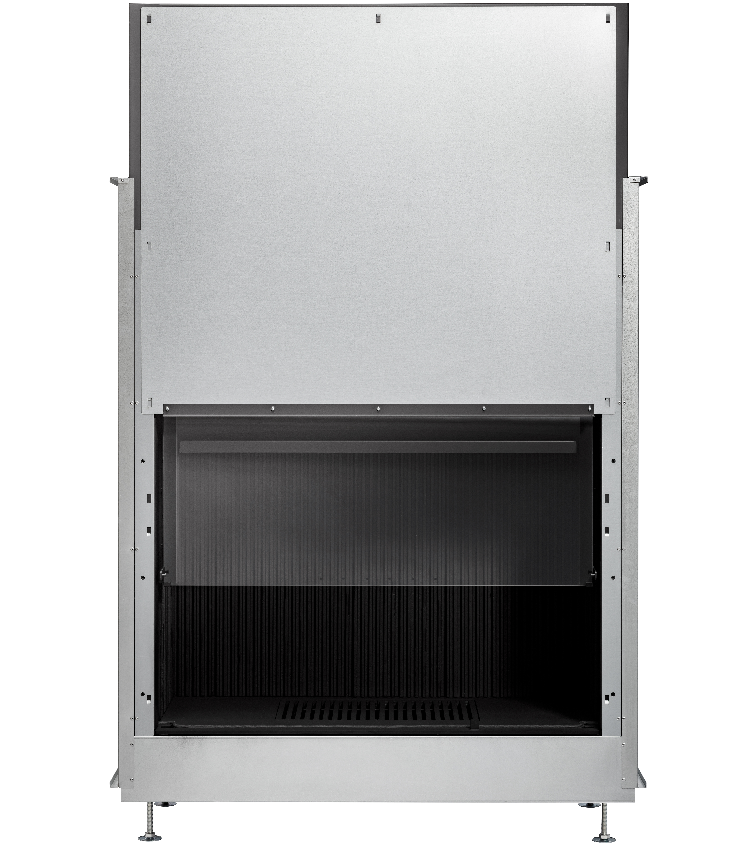

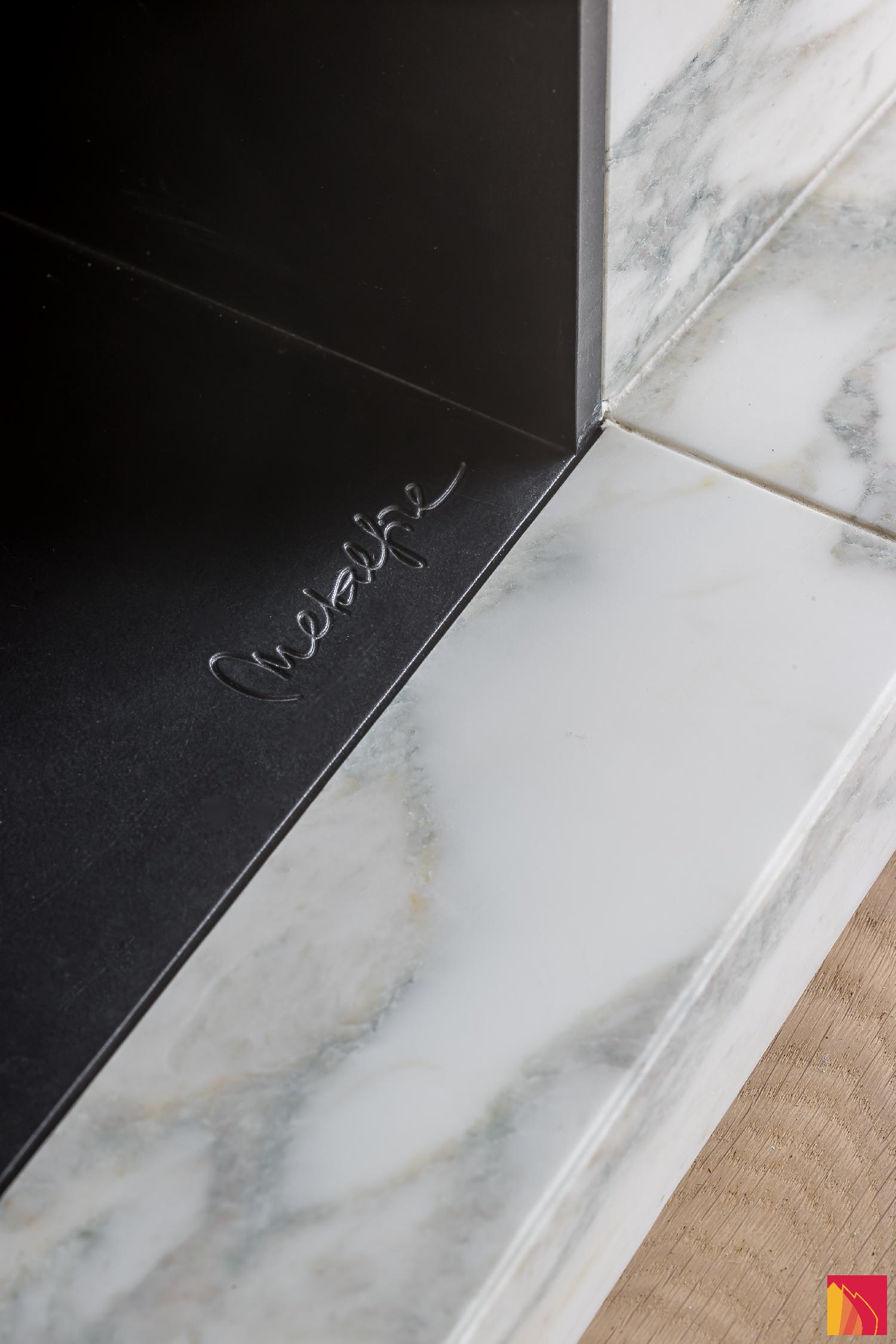

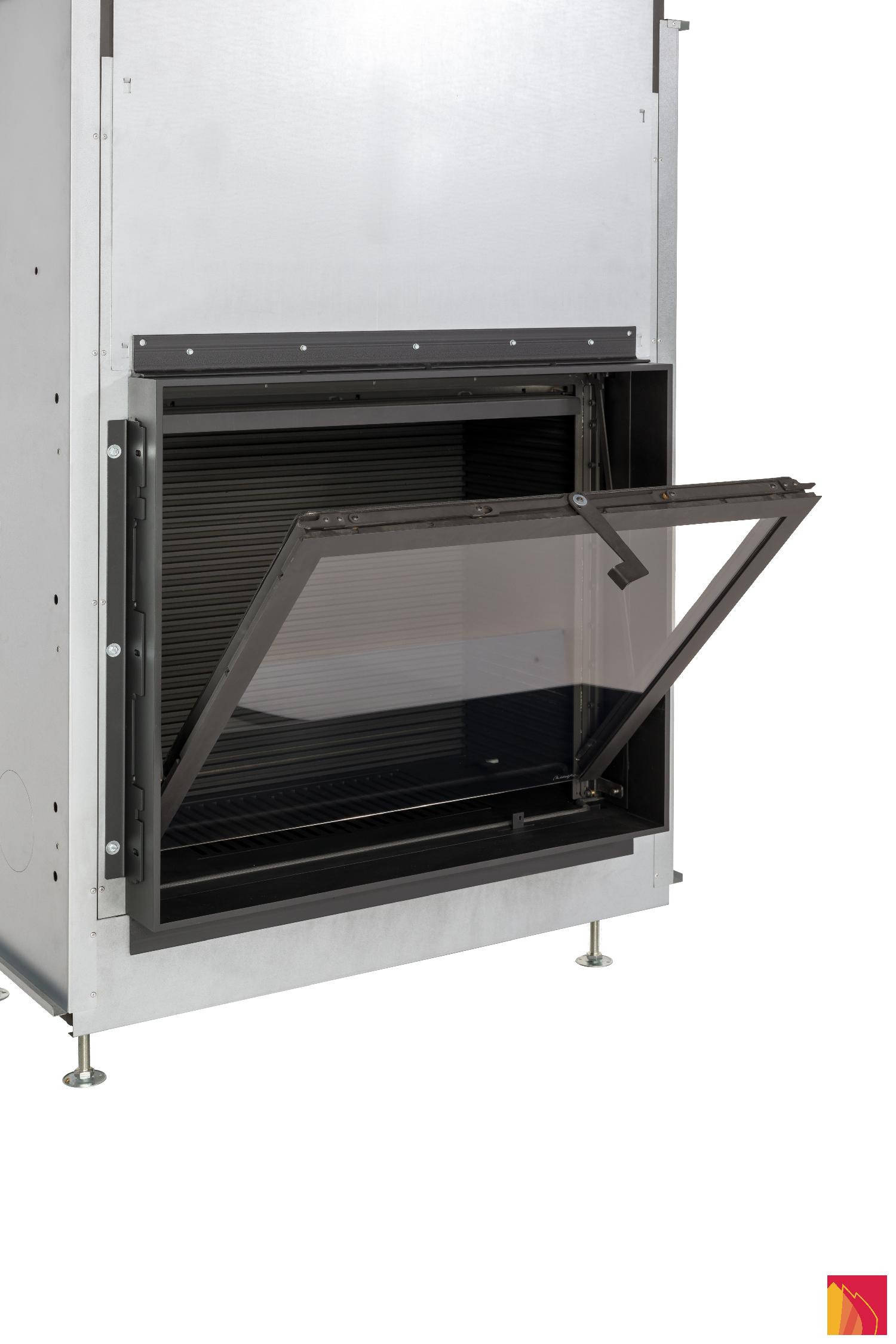

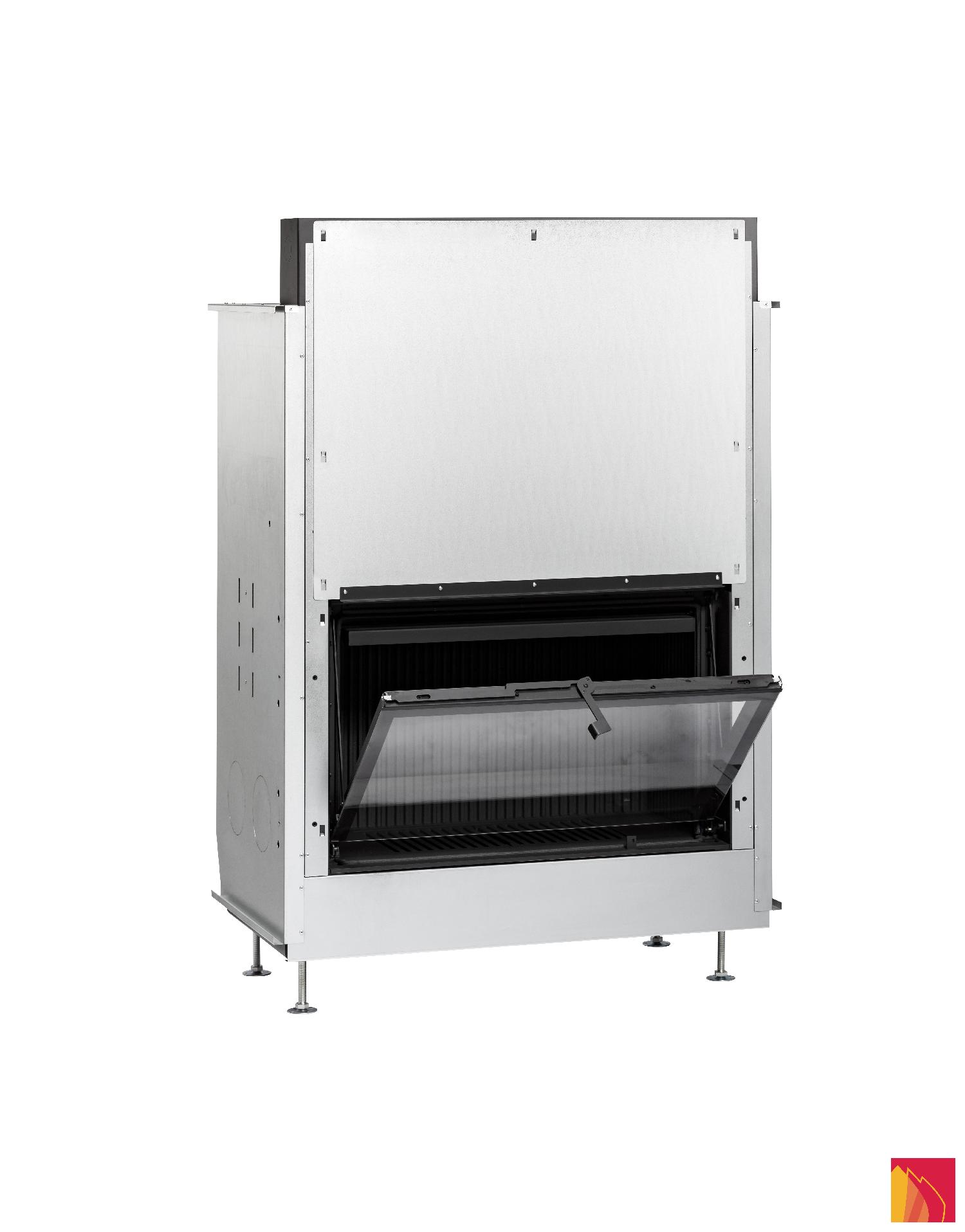

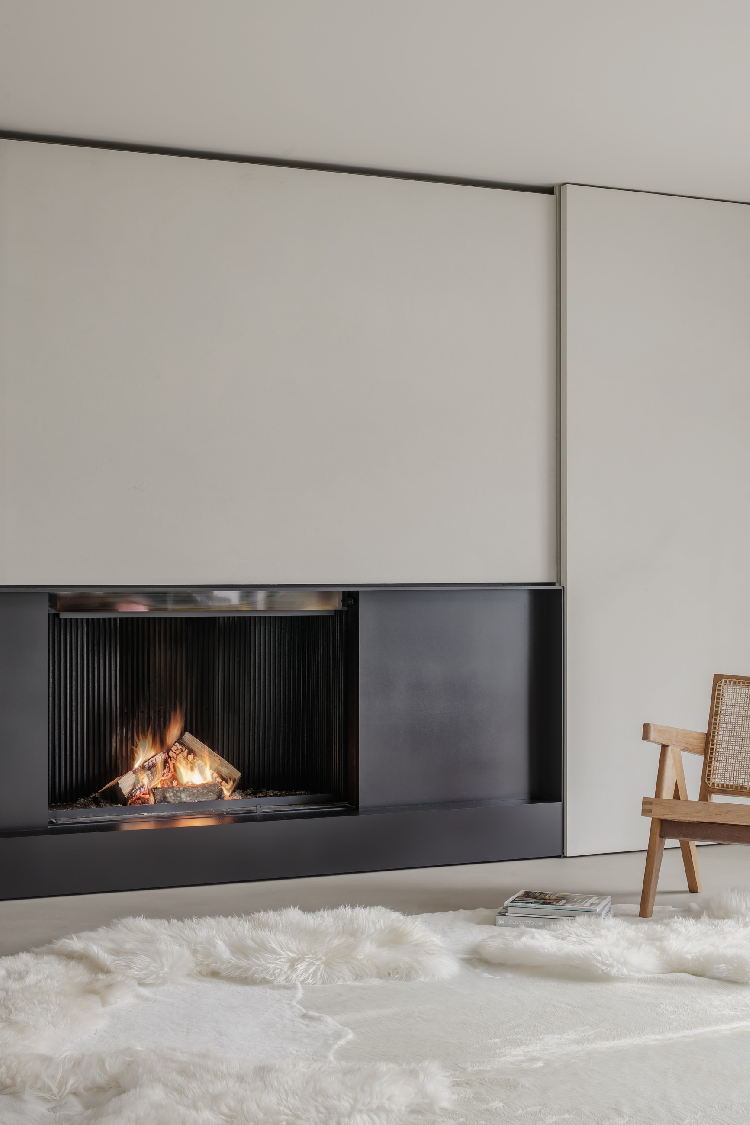

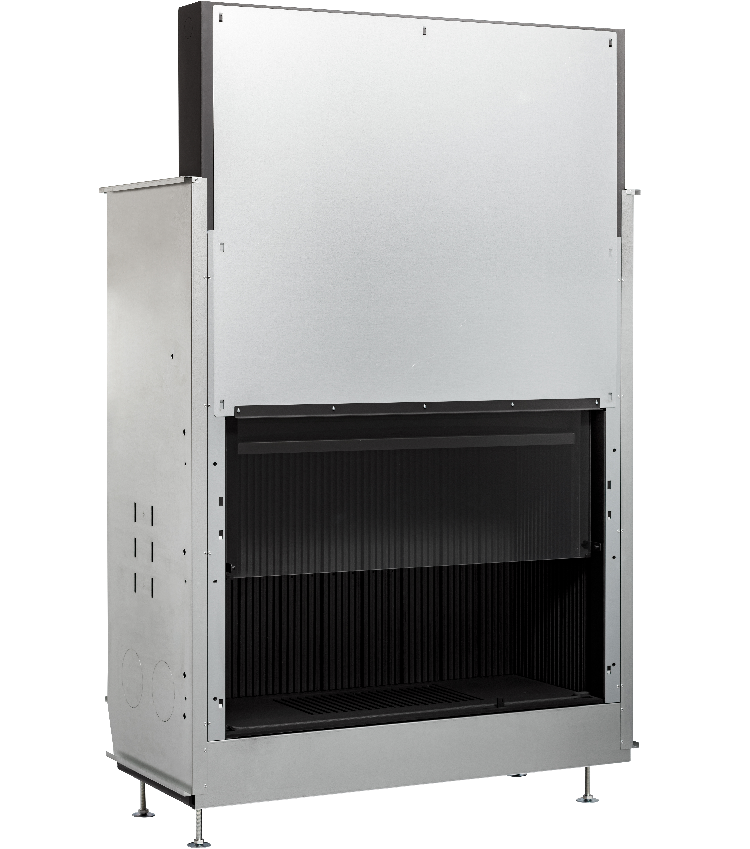

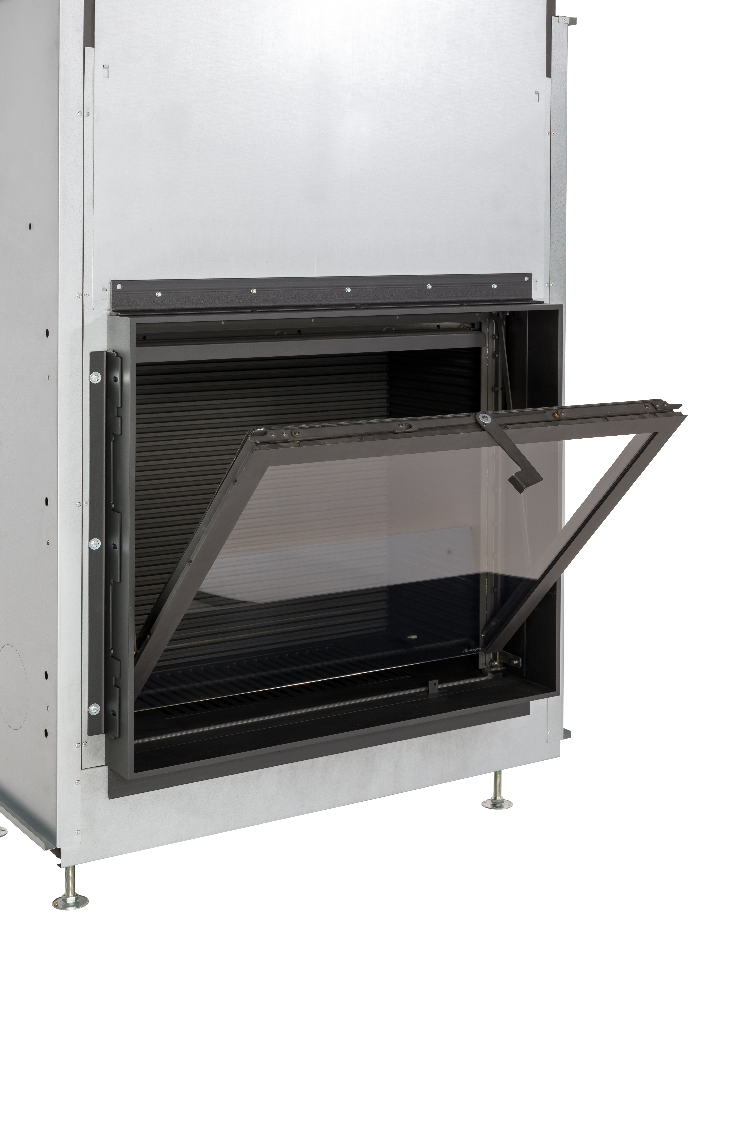

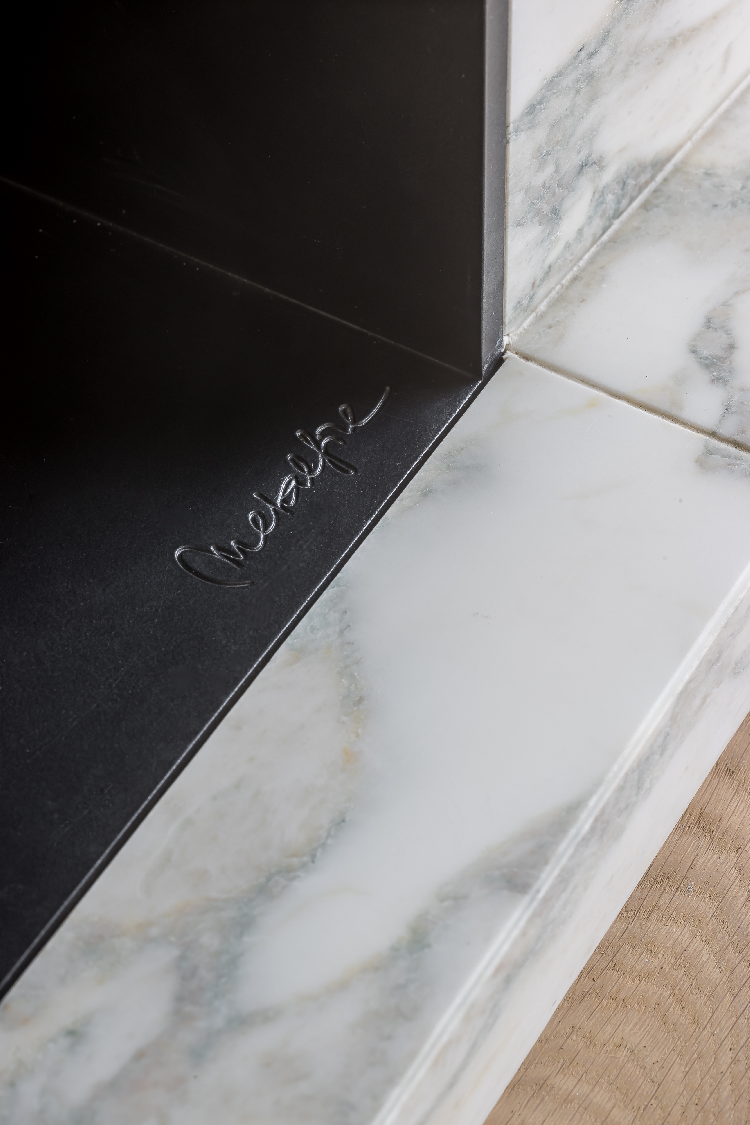

The minimalist design features a flush-mounted 10mm steel frame that fades away to make way for the spectacle of the fire. The balanced-lift door makes it easy to light, reload and clean the glass, while the opening mechanism can be tilted for quick maintenance.

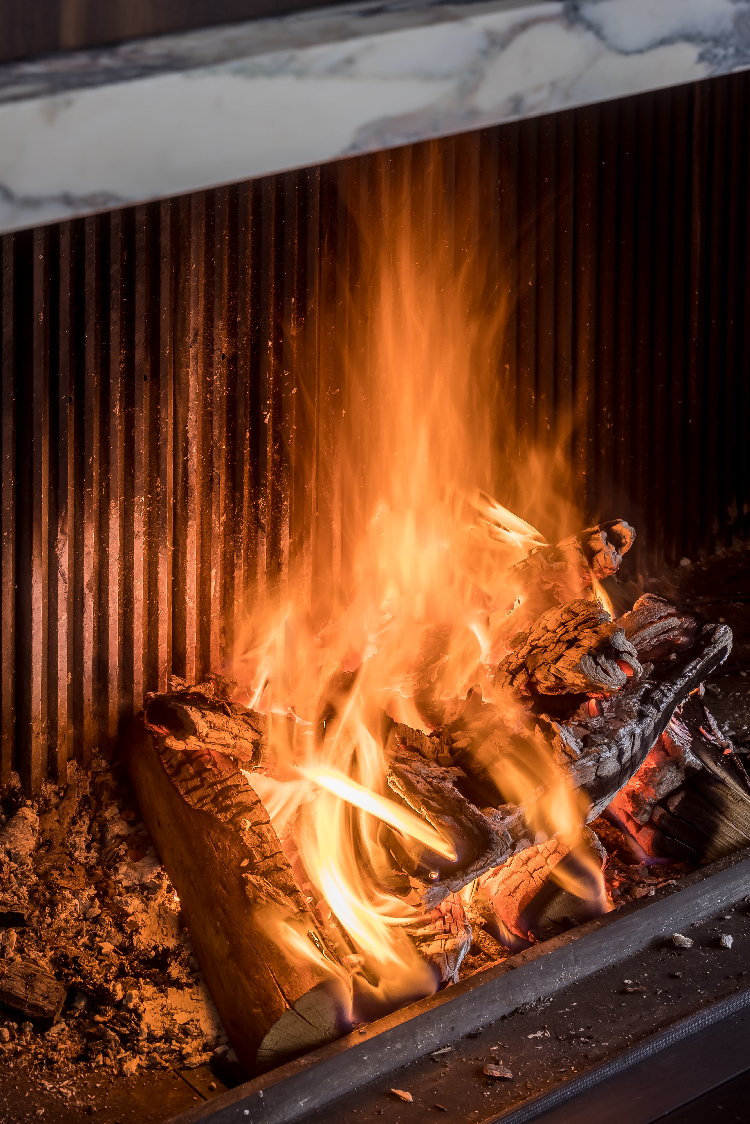

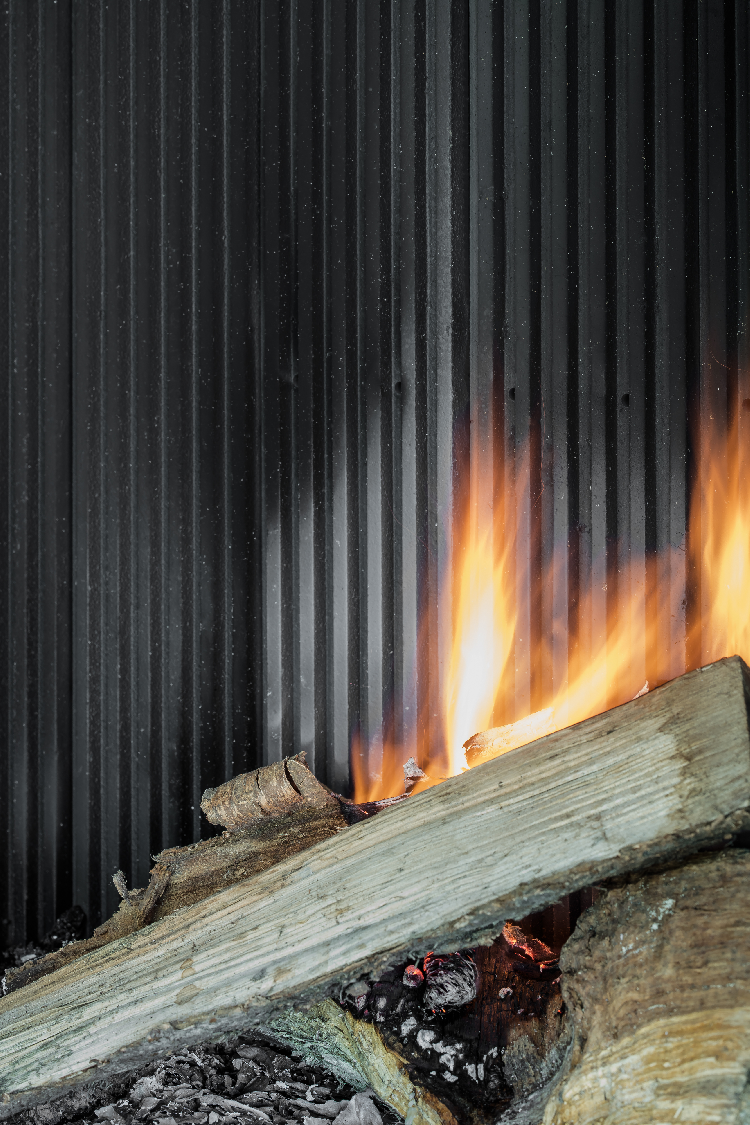

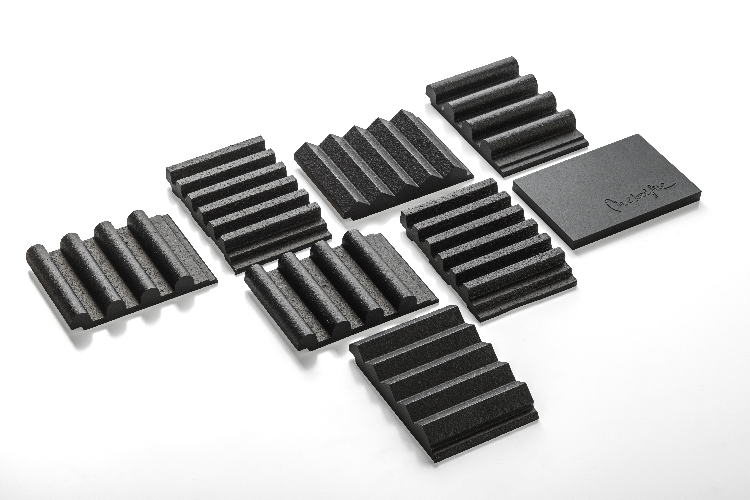

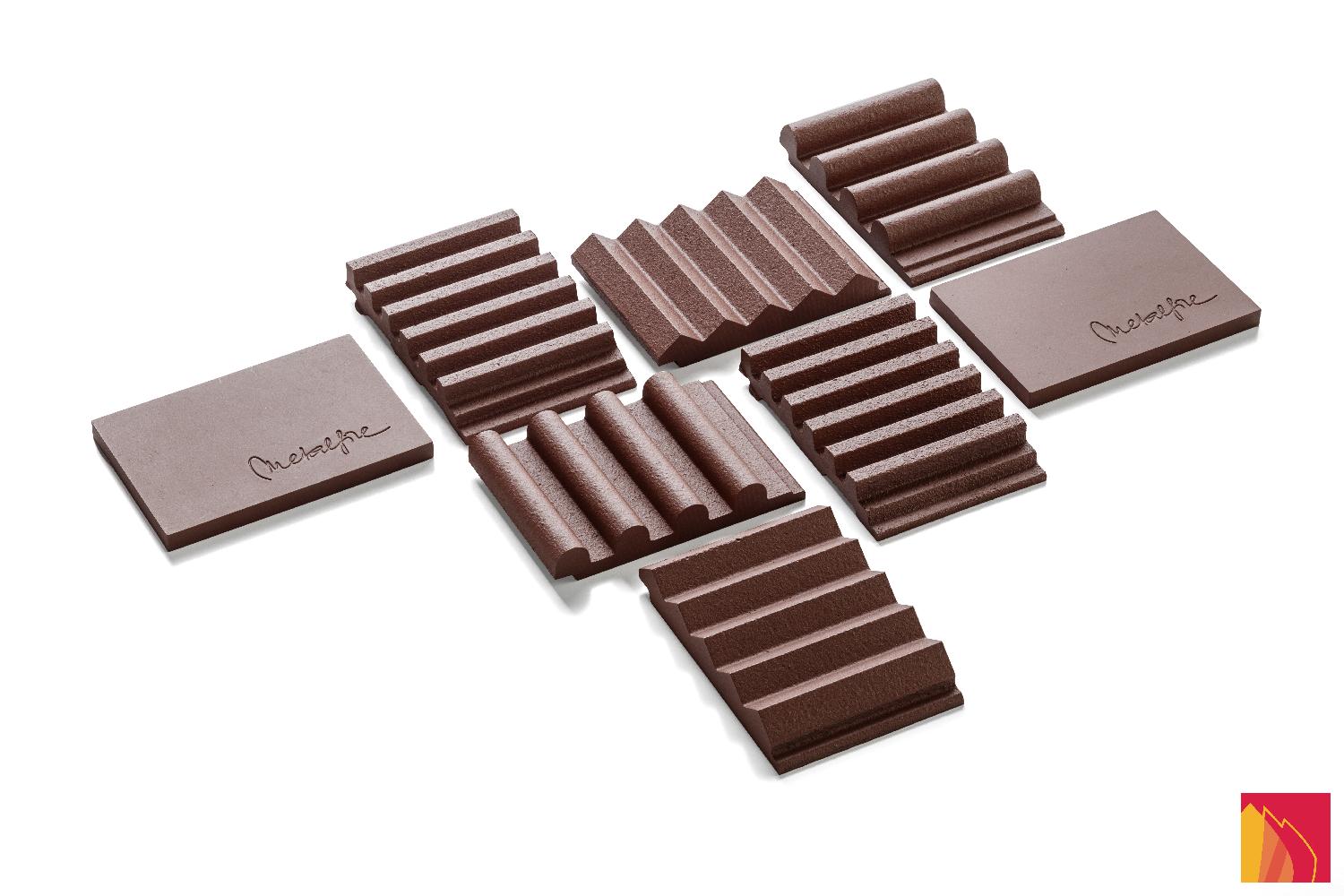

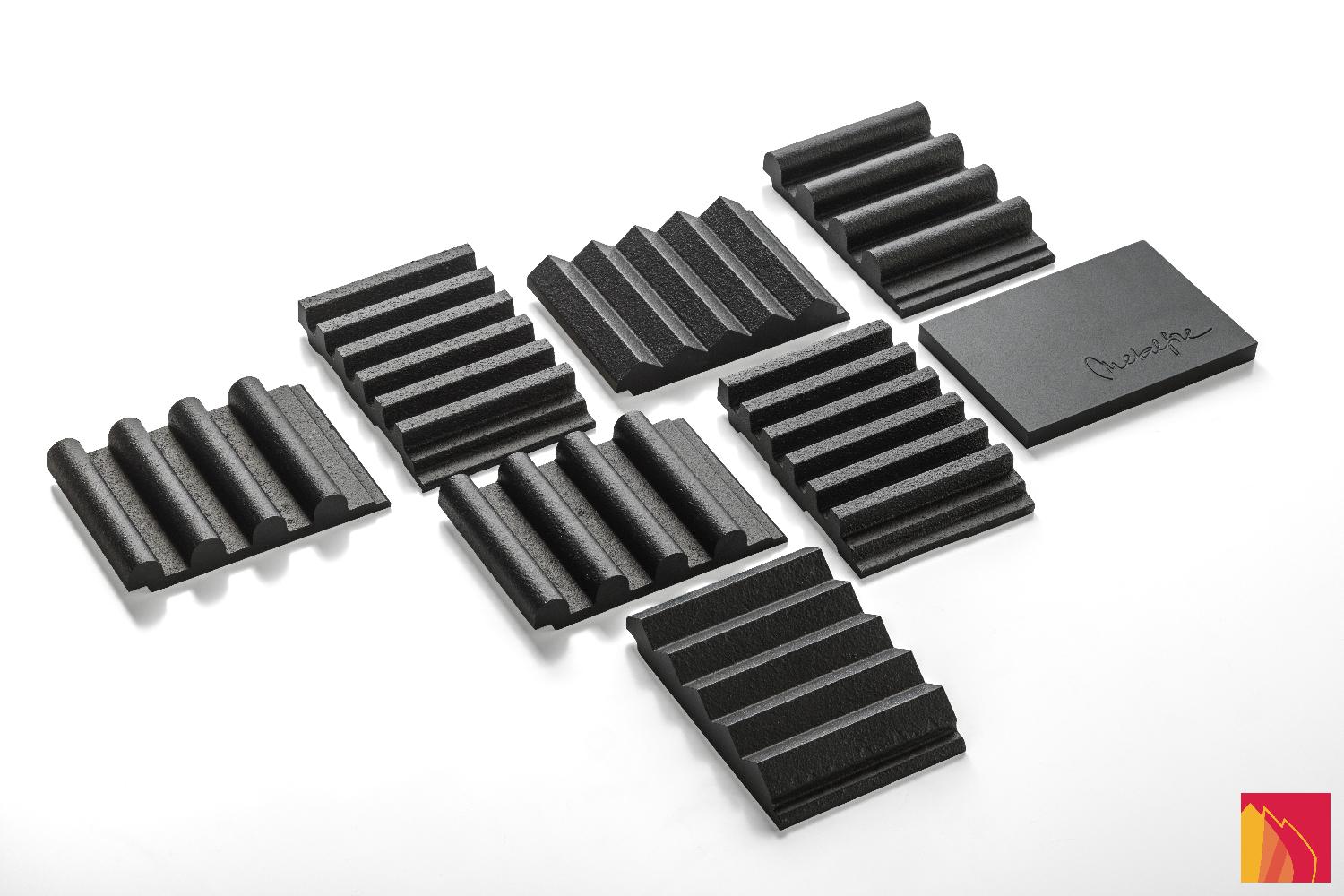

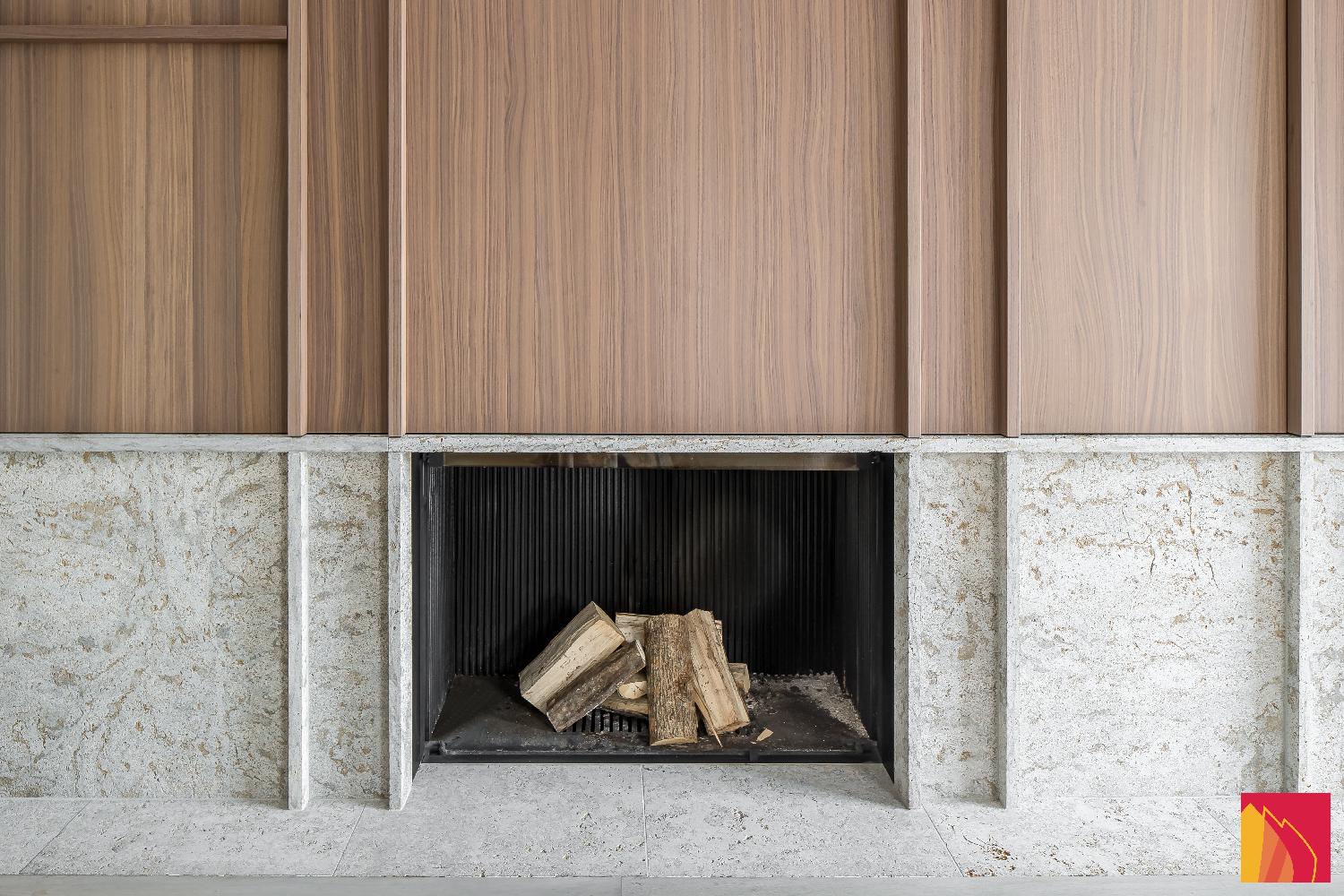

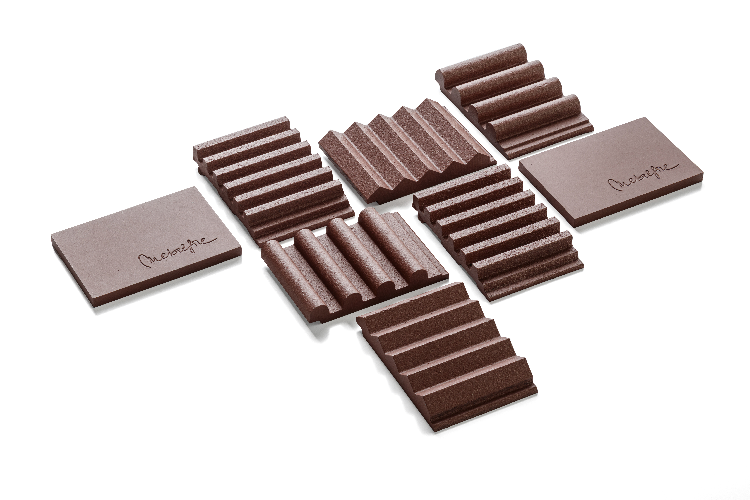

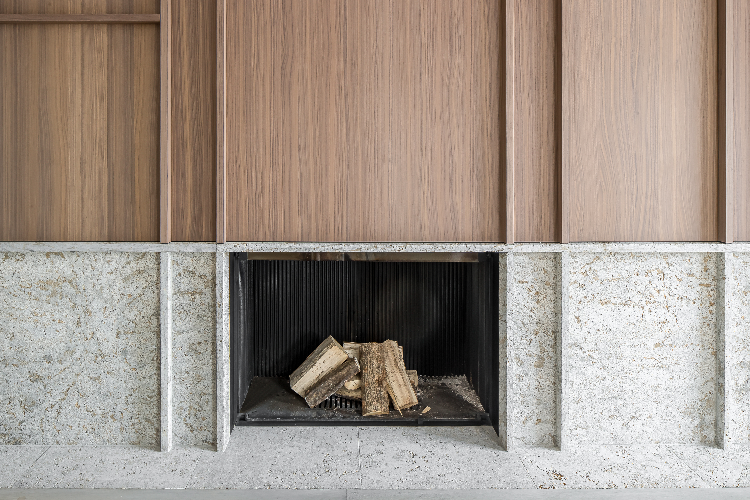

Inside, a choice of refractory finishes (Original, Triangle, Round or Ceramic) allows you to match the aesthetics of the fireplace to your project: waxed concrete, natural stone, patinated steel... Each configuration is made in Belgium with the precision craftsmanship for which Metalfire is renowned.
Technical data
| Reference | 65.32134 |
|---|---|
| Rated power rating | 23.5kW |
| Weight | 495kg |
| Diameter / Smoke outlet | 300Ø |
| Manufacturer | Metalfire |
| Smoke outlet | Top |
| Vision of fire | Front window |
| Outside air | Under and behind |
| Size of the logs | 50cm |
| View more | |
Awards
Documents
AEAI
ULTIME D MF 1050-75 WHE 1S.stp
Technical data sheet
Declaration of performance
Instruction manual
CAD & BIM
SketchUp
AutoCAD
Variants
| Reference | Article | |
| 65.32132 | ULTIMATE D 1050-75 WHE 1S BRICK Retractable door |
|
| 65.32133 | ULTIMATE D 1050-75 WHE 1S CERAMIC Retractable door |
|
| 65.32134 | ULTIMATE D 1050-75 WHE 1S ORIGINAL Retractable door |
|
| 65.32135 | ULTIMATE D 1050-75 WHE 1S ROUND Retractable door |
|
| 65.32136 | ULTIMATE D 1050-75 WHE 1S TRIANGLE Retractable door |
|
| View more |
