M-Design Luna Diamond 850DV

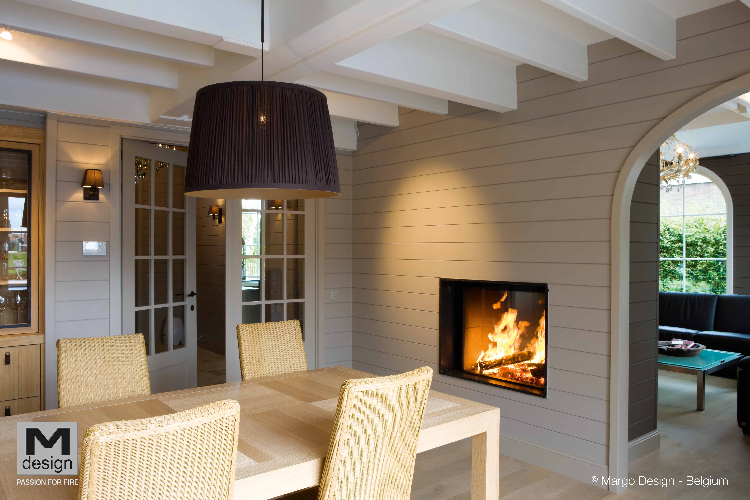

The double-sided wooden fireplace LUNA Diamond 850 DV

The Belgian M-Design offers, with this double-sided wood burning fireplace LUNA Diamond 850 DV, a panoramic and unobstructed view on your fireplace. Find the pleasure of a built-in fireplace on the living room side and on the living room side simultaneously. The wooden fireplace is built into a partition wall to enjoy the same fire from two different rooms.

LUNA Diamond 850 DV the revolutionary wood-burning fireplace.

In addition to promulgating unparalleled pleasure with its double exposure, the LUNA Diamond 850 DV wood-burning fireplace is equipped with innovations that increase the heating efficiency tenfold for up to 80% combustion optimization. A unique system that comes with a self-cleaning glass principle. Thanks to its retractable windows and fire screens (optional) you can also enjoy the crackling of the wood. The interior of the fireplace is up to you: chamotte or cast iron, fine or coarse grooves.

Technical data

Reference 54.9464
Dimensions 779 x 652 mm
Rated power rating 14kW
Weight 330kg
Diameter / Smoke outlet 300Ø
Manufacturer M-Design

Awards

Documents

CAD & BIM

Variants

Reference Article
54.9464 Luna Diamond 850DV
Without interior
Mounting frame included
54.9465 Luna Diamond 1000DV
Without interior
Mounting frame included

Accessories

Reference Article
54.9352 Fresh air damper for a chimney
Cable valve ø150mm complete with control and long cable
54.9473 Built-in smoke damper
With stem
2.9772 Outside fresh air kit

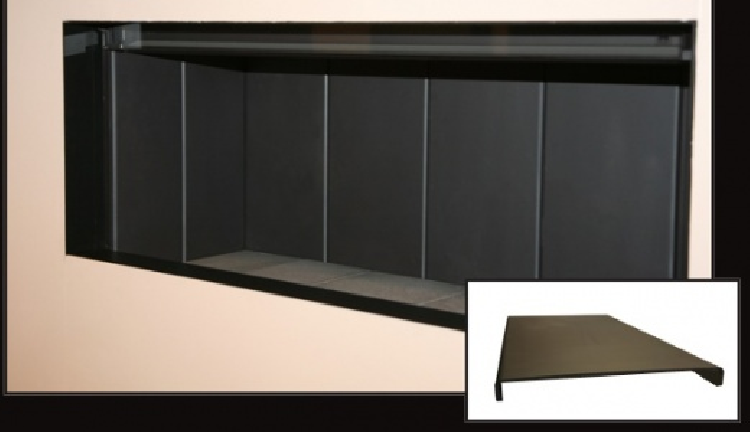

54.9487 Black steel interior - Luna Diamond "DV" wood version

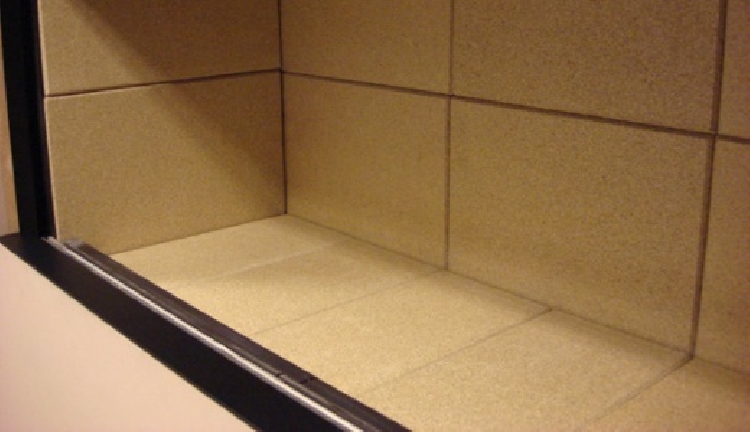

54.9488 Refractory brick interior - Luna Diamond "DV" wood version

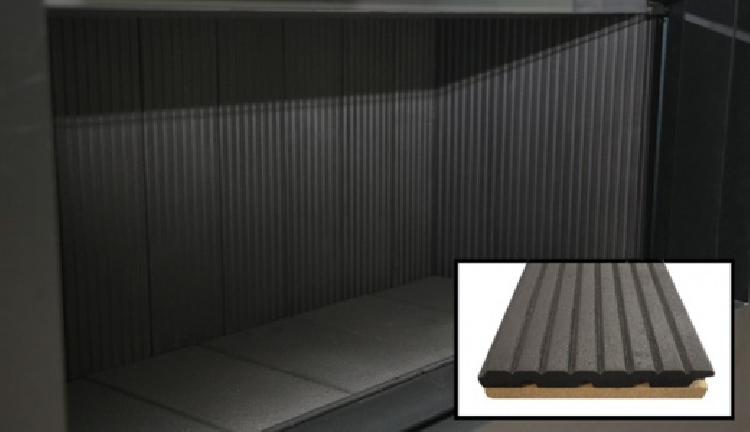

54.9489 Cast iron interior - Luna Diamond "DV" wood version

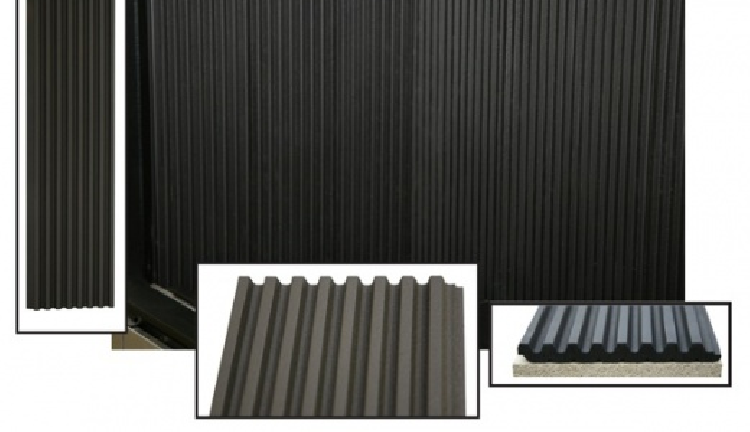

54.9490 Interior fine reinure cast iron - Luna Diamond "DV" version wood
54.9561 Mounting frame steel black 4 mm | 4 sides 45 mm
54.9562 Mounting frame steel black 4 mm | 4 sides 75 mm
54.9563 Mounting frame steel black 4 mm | 4 sides 105 mm
54.9624 SWIPE option
For the operation of the automatic opening/closing of the window and firewall, automatic air flap and adjustment of the RGB LED lighting (5 m). Control of the fireplace with a smartphone or tablet (Apple/Android).
View more
